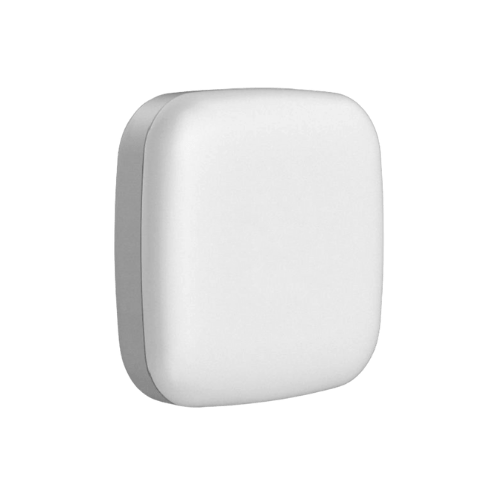

ZenMeasure Temperature Label
Food, pharmaceuticals, and chemicals have extremely strict storage condition requirements, and exceeding the safe temperature range may seriously affect the quality.
ZenMeasure wireless temperature tags can be widely used in all aspects of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks, refrigerated packages, cold storage, laboratories, etc., to provide data proof of temperature during storage and transport.
It can also be placed in refrigerators and warehouses for a long time as a temperature data collection device.
ZenMeasure Product Features
LoRa / Bluetooth
Tag can upload temperature data via Bluetooth, LoRa
Low cost
The costs is $0.03 USD/day on average
IP67 Waterproof Class
The device is IP67 rated and can operate under water for up to 30 minutes
Long Lifespan
Label works continuously for one year
Temperature Label Specs
| Product Name | ZenMeasure Bluetooth Temperature Label MOT-U202 | ZenMeasure Bluetooth Temperature Label MOT-U401 | ZenMeasure Bluetooth Temperature Label MOT-U403 | ZenMeasure Bluetooth Temperature Label Mini MOT-U104a/b |
| Temperature Monitoring Range | -10℃ ~ +60℃ (Res ±0.5℃) | -35℃ ~ +70℃ (Res ±0.5℃) | -35℃ ~ +70℃ (Res ±0.5℃) | -10℃ ~ +60℃ (Res ±0.5℃) |
| Dimension | 62 x 35mm, Thickness 4.6mm | 62 x 35mm, Thickness 10mm | 94 x 35mm, Thickness 10mm | 32.5 x 28.8mm, Thickness 7.6mm |
| Water Proof Class | IP67 | IP67 | IP67 | IP67 |
| Wireless Technology | Bluetooth (BLE) | Bluetooth (BLE) | Bluetooth (BLE) | Bluetooth (BLE) |
| Battery Type | CR2450 Button Battery x1 | CR2450 Button Battery x1 | CR2450 Button Battery x2 | CR2450 Button Battery x1 |
| Storage | 100,000 Records | 100,000 Records | 100,000 Records | 100,000 Records |
| Frequency | 0.5 – 10mins Configurable | 0.5 – 10mins Configurable | 0.5 – 10mins Configurable | 0.5 – 10mins Configurable |
| Upload frequency | Refresh once per second | Refresh once per second | Refresh once per second | Refresh once per second |
Gateway Specs
| Product Name | Bluetooth Gateway(WiFi/Wired) | Bluetooth Gateway-Upgraded (WiFi/Wired) | Bluetooth Gateway（Basic） | Bluetooth Gateway（4G） |
| Bluetooth Version | BluetoothLE 4.0/4.1/4.2 | BluetoothLE4.0/4.1/4.2, 5.0 | BLE 4.0/4.1/4.2/5.0 | BLE 4.0/4.1/4.2/5.0 |
| WiFi | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac | 802.11a/b/g/n/ac |
| Concurrent Connections | Up to 20 | Up to 40 | Up to 10 | |
| Power | PoE / Micro-USB | PoE / Micro-USB | PoE / Micro-USB | PoE / Micro-USB |
| Range | 30m | |||
| Supported Protcol | WebSocket/HTTP/MQTT | WebSocket/HTTP/MQTT |
Hand-Held PDA
| Product Name | ZenMeasure PDA V2 |
| Screen | 5.5″HD,1280*720 |
| System | Android 6.0 |
| Power | 48 hours operation, 7 days standby |
| GPS | GPS，AGPS |
| Camera | 500MP Camera，Flash Light, Auto Focus |
| Interface | Type-C for charging and data transfer |
| Function | Report Printing/Paper Width: 58mm |
